Maxon A-Max Motors are an innovative range of high-quality DC motors, equipped with powerful AlNICO permanent magnets. The “heart” of our motors is the ironless maxon winding, that has been tested millions of times. This is the latest technology for compact, powerful and low-inertia drives.

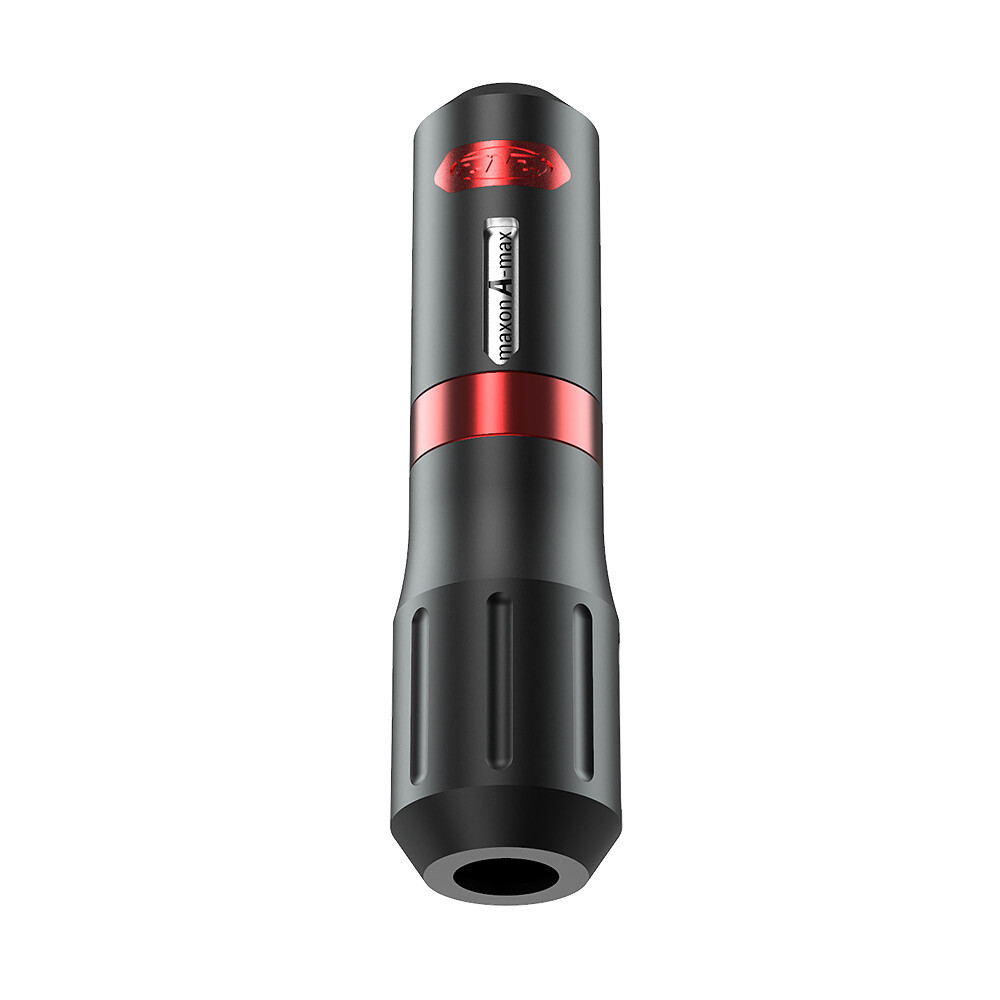

It uses nano motor technology which easily achieves the effect of reducing heat generation and vibration. The CNC-X1 rotary tattoo machine puts you in complete control with ultimate consistency.
With the integrated grip you can turn the grip to change the needle length from 0 to 4mm and it has integrated balls to lock the needle length. These click when you turn it, which lets you feel the change in depth of the needle. There is a screw on the outside of this grip which stops the grip from falling off when twisted completely.
The drive mechanism is composed of the Maxon Motor, a 3.2mm Excenter, and a 10at speed reduction disc. This speed reduction disc is made of the latest materials (POM and PTFE) and is wear resistant. The motor is supplied through a standard RCA connection.
Machine Name: X1
Operating Voltage: 9V-13V
Start Voltage: 9V
Stroke: 3.2mm
Needle Protrusion: 0-4mm
Drive: Maxon Motor
Length: 120mm
Grip Diameter: 30mm
Weight: 182g
Nominal Voltage: 12V
Nominal Speed: 8830rpm
No Load Speed: 11500rpm
Max Efficiency: 83%
